Premium Prefabricated Solutions for Global Projects
Our metal truss systems deliver unmatched performance across industries:
Heavy-duty steel beam trusses for factory mezzanines, warehouse racks, and power plant frameworks.
Steel truss frames for highways, railway bridges, and metro stations, engineered for seismic resilience.

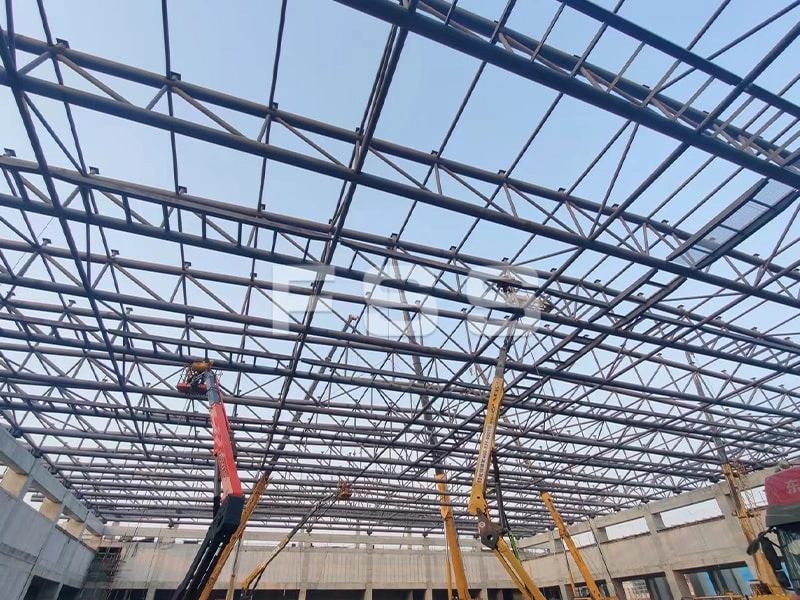

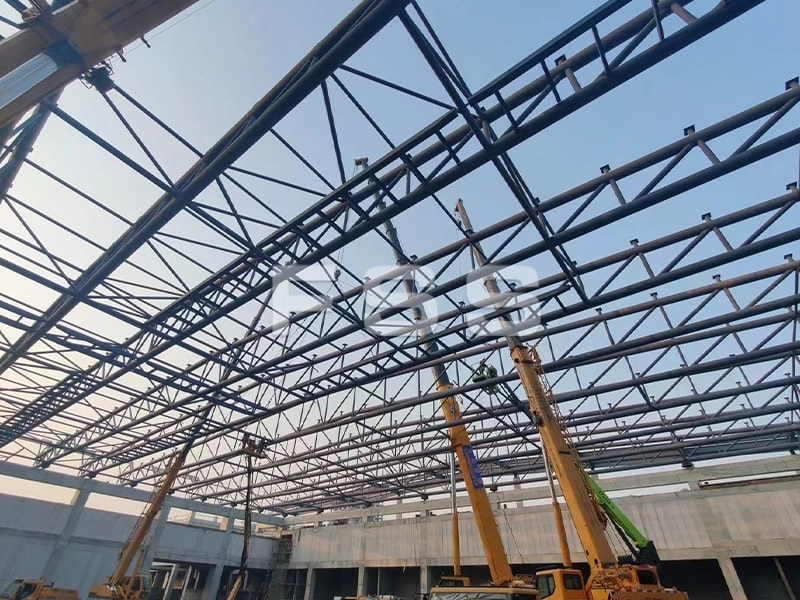

Curved prefabricated steel trusses for stadiums, exhibition halls, and arched rooftop structures.
Corrosion-resistant trusses for ports, oil rigs, and coastal wind farms.
Why choose us?
Pre-engineered modular designs reduce onsite labor and installation complexity.
Customizable coatings for extreme climates (salt spray, UV resistance).
Expertise in steel truss suppliers serving 50+ countries since 2008.
| Step | Process | Technical Details |
|---|---|---|
| Design | BIM modeling & structural simulation | Led by a team of 30+ certified engineers with 15+ years of truss design experience. Uses ANSYS for load optimization and AI-driven clash detection. |
| Material Prep | High-grade Q355B steel cutting | Laser-cutting with 0.1mm precision; material traceability via blockchain for Q355B steel batches. |

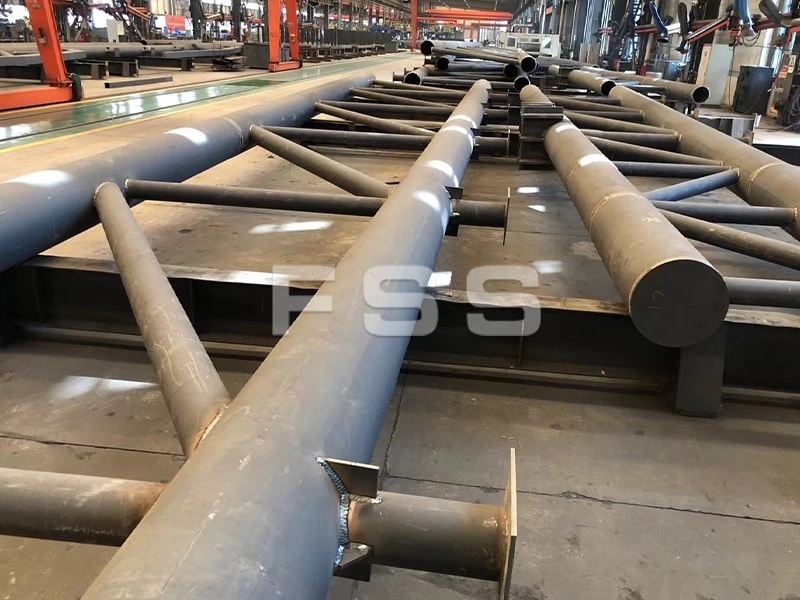

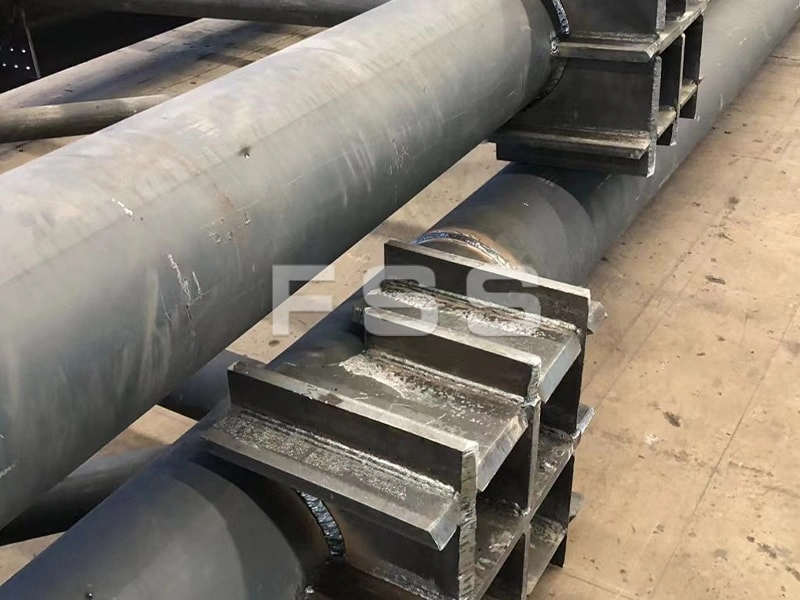

| Welding | Automated MIG/TIG welding | Robotic welding robots (KUKA/FANUC) ensure full penetration welds. Inspected via phased-array UT (UT 20dB SNR). |

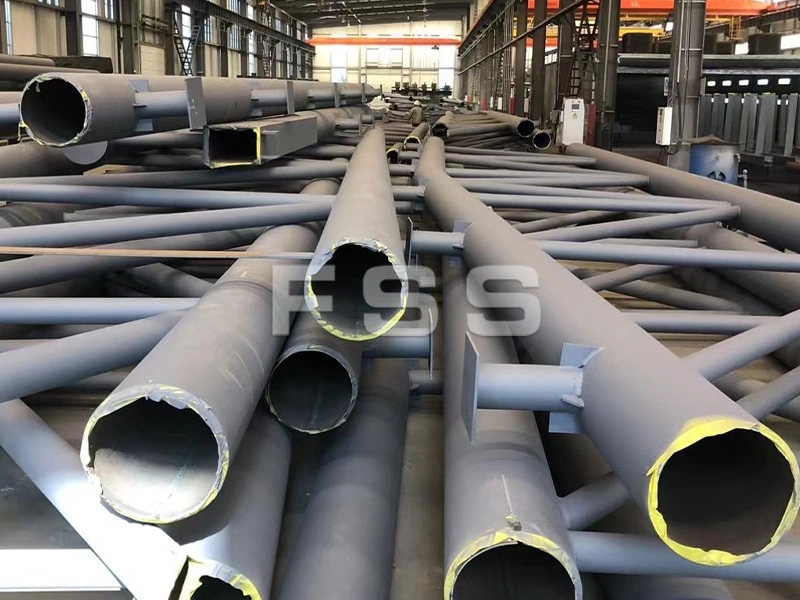

| Assembly | Modular truss assembly | Bolted connections with anti-loosening torque control (±3% accuracy). Pre-assembled in 12m x 4m sections for rapid field integration. |
| Quality Check | 3D scanning & load testing | Coordinate-measuring machines (CMM) validate tolerances within ±0.5mm. Load tests simulate 1.5x design capacity using hydraulic actuators. |
| Packaging & Shipping | Custom crates with anti-rust film | Vacuum-sealed film + VCI corrosion inhibitors. SPMT-ready for oversized cargo; GPS-tracked freight with real-time temperature monitoring. |
Our steel truss frame systems exceed global standards through:
Design Validation: AISC/GB 50017-2017 dual-certified engineering.
Material Inspection: Q355B steel sourced from Baosteel/Ansteel, with third-party SGS/BV material certificates.
Final Testing: Load simulations up to 1.5x design capacity; salt spray tests (GB/T 10125) for 1,500+ hours.
Certifications: ISO 9001, GB/T 25181-2019 green building compliance.
Proven Expertise: Supplied prefabricated steel trusses for a 50,000m² stadium in South Aferica, completed on time despite desert climate challenges.

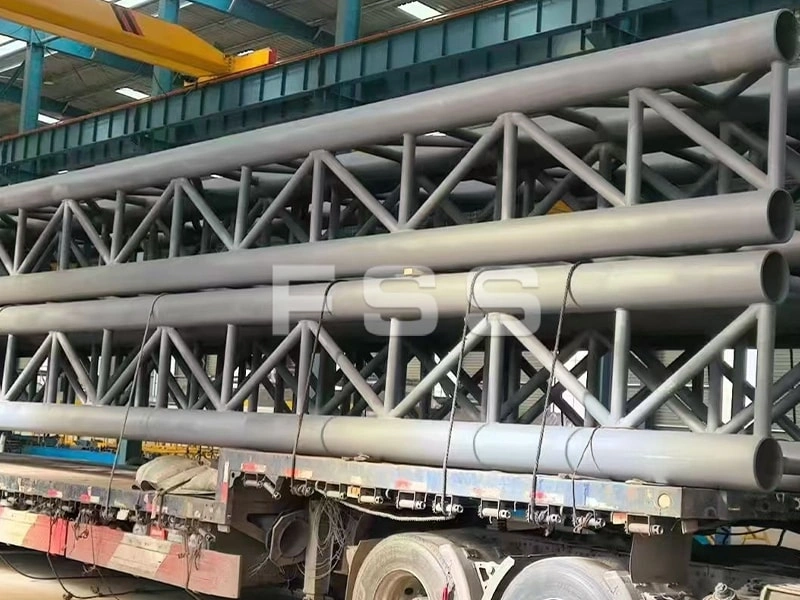

Modular Shipping: Pre-assembled steel truss segments minimize onsite assembly time by 60%.
Global Logistics: Partnered with Maersk/COSCO for priority LCL/FCL shipments; SPMT trailers handle 500-ton loads.
Real-Time Tracking: IoT sensors monitor temperature/humidity during transit; blockchain-enabled documentation for customs.
On-Demand Services: Door-to-door customs clearance in 35+ countries
Case Study: Shipped 800-ton bridge trusses to Indonesia via heavy-lift vessel, avoiding 30% demurrage fees through precise logistics planning.
15+ Years of Excellence: Specialized in steel truss suppliers since 2008, serving projects from Arctic Russia to tropical Malaysia.
Design Team: 30+ engineers with ASCE/ICE certifications; average 10+ years in truss design.
Military-Grade Quality: Q355B steel with galvanized coatings (HDG 850g/m²) for 50-year durability.
